Concentricity Gauge

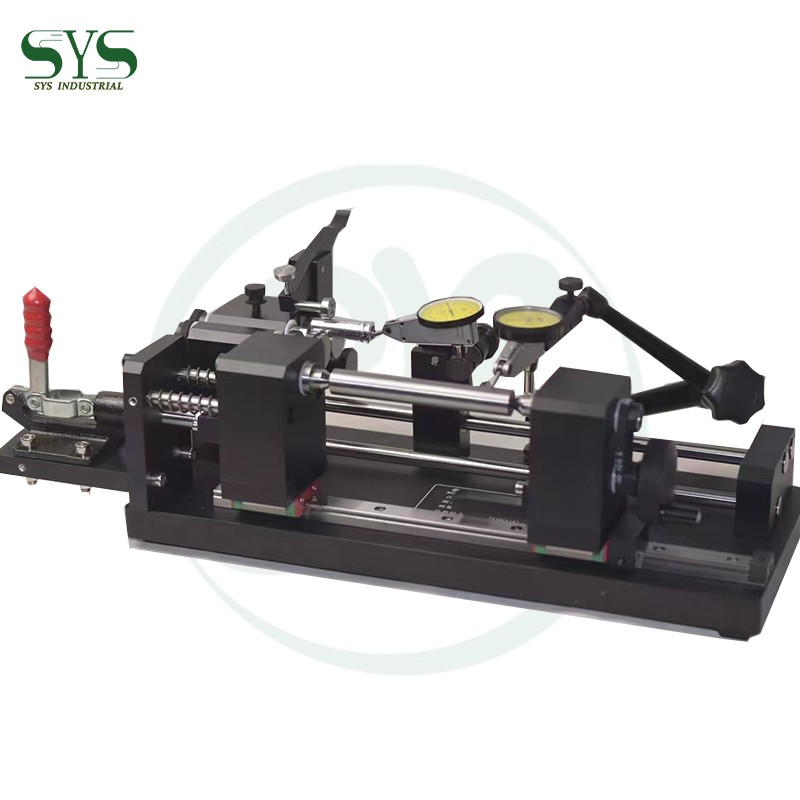

Concentricity Measuring Device/Concentricity Gauge

The concentricity gages are used for inspection tasks on external, internal and flat faces on rotating parts. Particularly, the concentricity of two or more diameters can be determined and axial run-out measurements performed.

It is application for centrifugal pumps, compressors, fans, generators and other rotating equipment to find the concentricity of the two axes of work. Widely used in petrochemical, power generation, paper, textile, and other machinery industries.

This concentricity gauge has axial dial indicator or micrometer, It is easy to read.

The base is equipped with high-performance magnets, which can be firmly adsorbed on the 12mm diameter tie bar, used to detect the concentricity of cylindrical pin type, gear type, fixed type, bolt type and other shaft workpieces, which not only improves the measurement accuracy and reduces the measurement error, but also can greatly improve the working efficiency, reduce the machine vibration and prolong the service life.

Features:

Accuracy more 0.003mm

Save time and fast measuring device.

Portable and easy to operation

Suitable for working on floor

Measuring range: 3-25mm; 10-50mm; 20-102mm

Measuring length: 102mm

Parallel runner: Parallel light wheel/parallel sheave

Support customized size/specification.
