Universal Testing Machine ST001
it is applied to test the material such as rubber, plastic, leather, metal, nylon line, fabric, paper, aviation, packaging, construction, petrifaction, electrician, vehicle and other materials. It is a stable and affordable material testing instruments for the incoming quality control, physical test, mechanics research, material research, etc.
Brief Introduction:

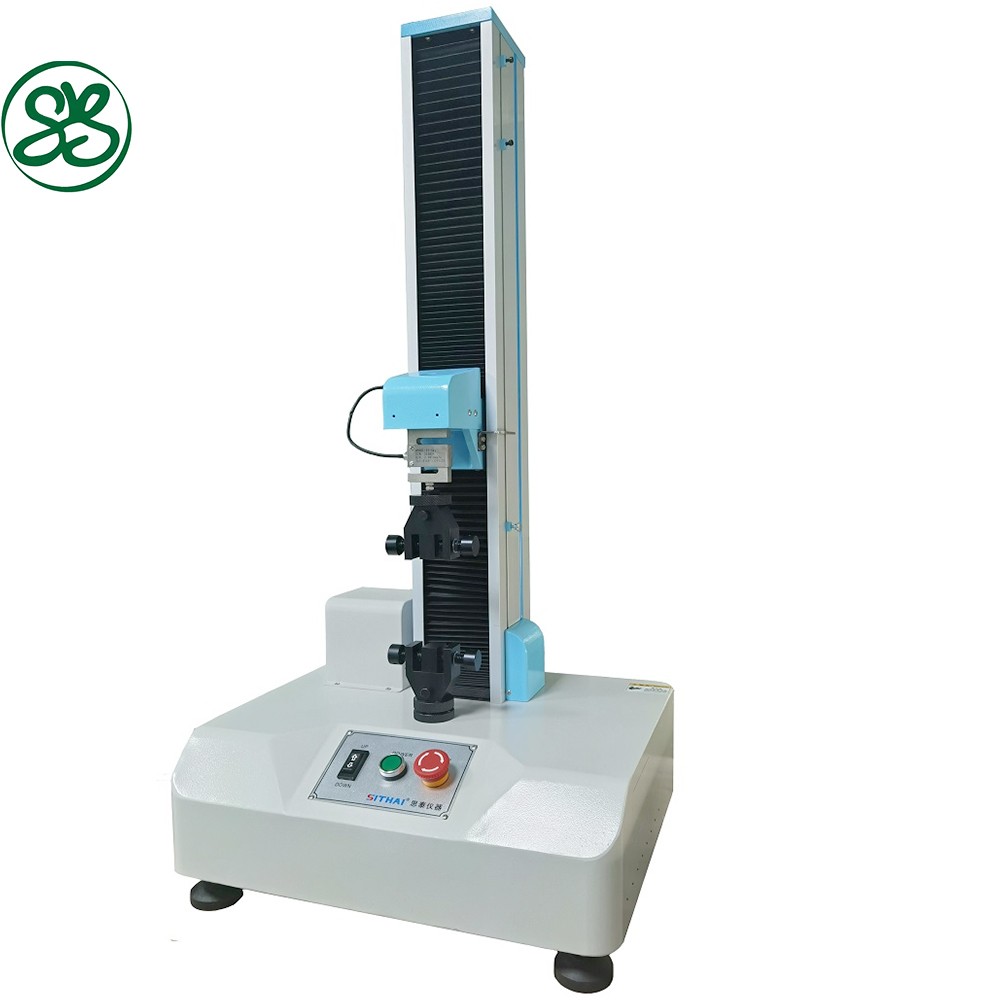

ST001 series of material testing machine is designed in single column with maximum testing force 1KN, it is able to make the material testing about tensile, compression, bending, shearing, bonding strength, peeling, tearing, etc, it is applied to test the material such as rubber, plastic, leather, metal, nylon line, fabric, paper, aviation, packaging, construction, petrifaction, electrician, vehicle and other materials. It is a stable and affordable material testing instruments for the incoming quality control, physical test, mechanics research, material research, etc.
Machine Structure:

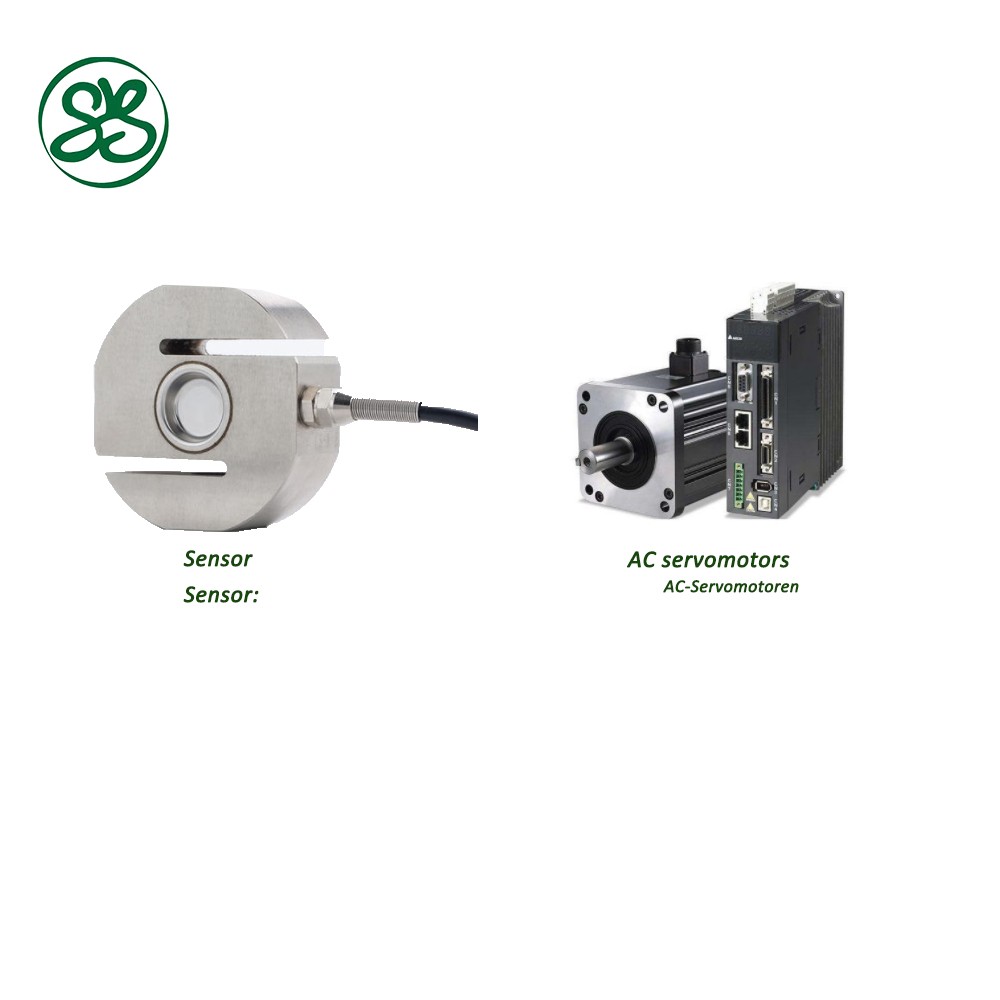

The material testing is driven by AC servo motor stably;
The linear motion is ensured by the precision ball screw rod smoothly;
The column is protected by aluminum shell with sandblasted surface perfectly;
The base cover is made of high-grade ABS plastic with spray coating, which is durable and beautiful.
The fine adjustment switch is standard delivery for up and down stroke;

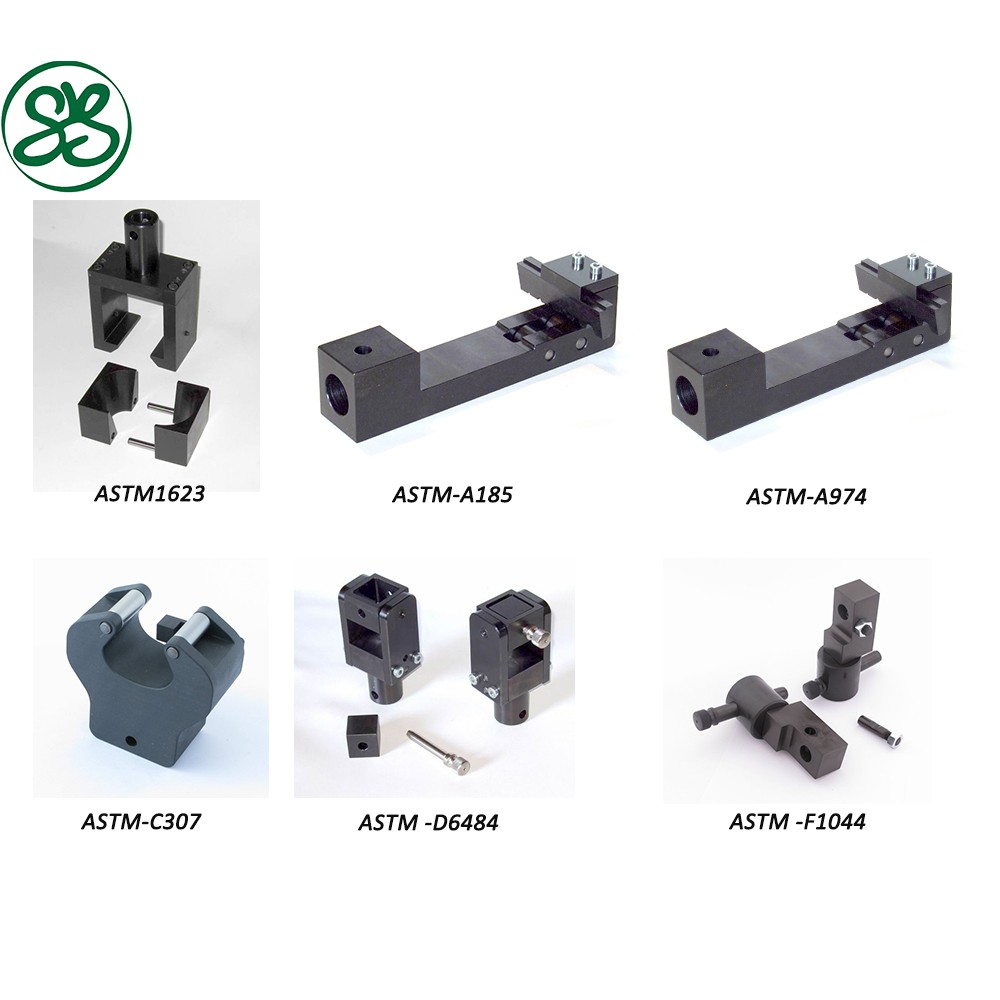

The different functional grips can be replaced by the quick-release-clamp easily
Machine Function:

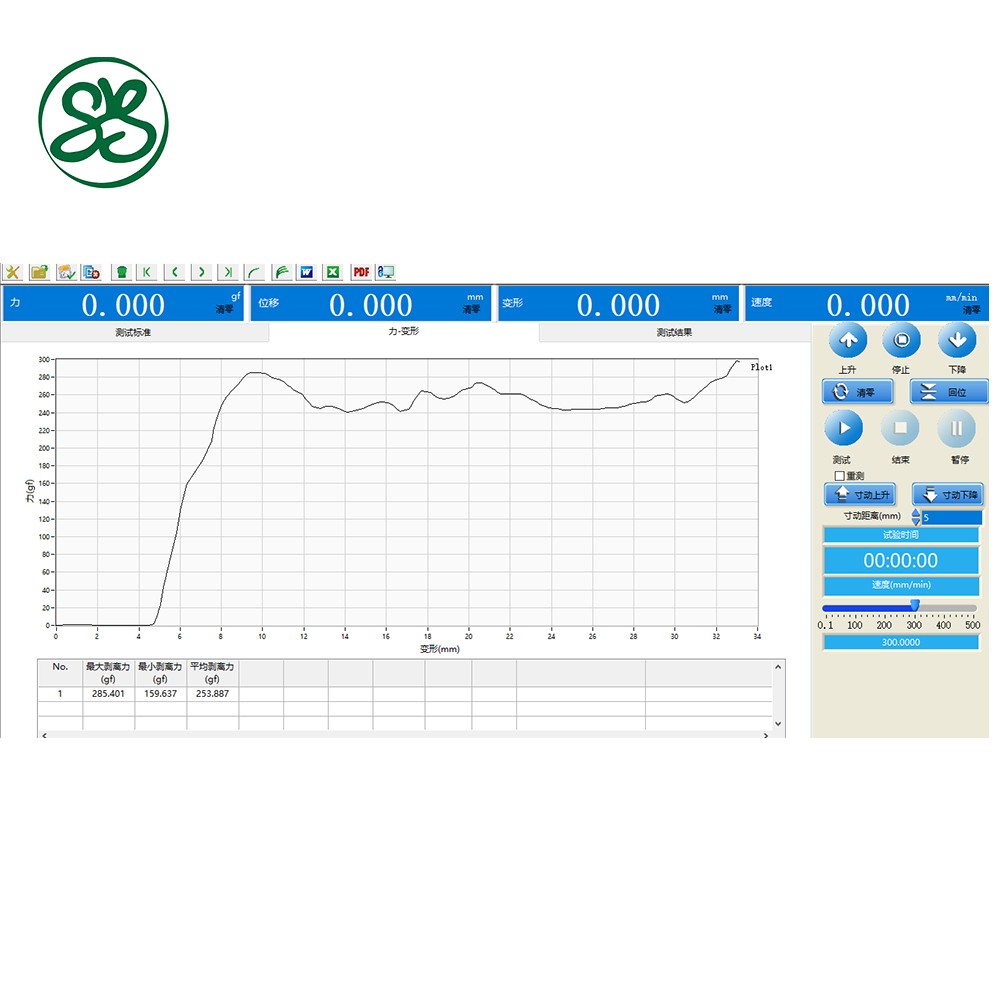

Powerful data analysis and statistical curves graphical analysis aids, with zoom, pan, crosshairs, and other functions;
Historical test data can be transferred to the graphics displayed simultaneously comparative analysis done;
Up to 7 interval setting, 40 manual taking points, 120 automatic pick point function. With the maximum, minimum, average, to the level of the average, median, standard deviation, population standard deviation, CPK values and other statistics;
Test curve shows: during the test in real time and can be a show of force at the same time - displacement, force - time, displacement - time, stress - strain curve, can easily switch to the screen to see the curve;
Custom test methods: with the speed, position shift, given the strength, will power rates, given stress, stress rate constant, constant strain, strain rate and other fixed control mode, enabling complex multi-step control can be nested loop. set automatic return, automatic judgment fracture, auto-zero function;
Positive and negative force sensor can be switched.
Specification
Force Capacity | 1kg(optional 2kg/5kg/10kg/20kg/100kg) |
Display | 5 inch touch screen control |
Force Resolution | 1/100,000 |
Force Accuracy | ≤±0.5% |
Test Range | 480mm |
Test Width | Ø120mm |
Test Speed | 0.01~500 mm/min(Customize is optional) |
Acquisition Rate | 2000 times/s |
Force Switch | N, kN, gf, kgf, lbf, kP, tf(SI), tf(long) |
Length Unit | mm, cm, Inch, m, Km, um |
Stress Unit | Pa, Kpa, Mpa, Gpa, KN/㎡,N/㎡ |
Stop Mode | Overload stop, emergency stop button, specimen damage automatic stop, upper & lower limit set automatic stop, automatic reset function |
Machine Drive | AC Servo motor driven |
Power | 400W |
Power Supply | 220V/50Hz or 110/60Hz |
Standard Delivery | main unit*1, operation software*1, 180° stripping fixture*1, sensor*1, data cable*1, power cord*1, certificate of conformity*1 |

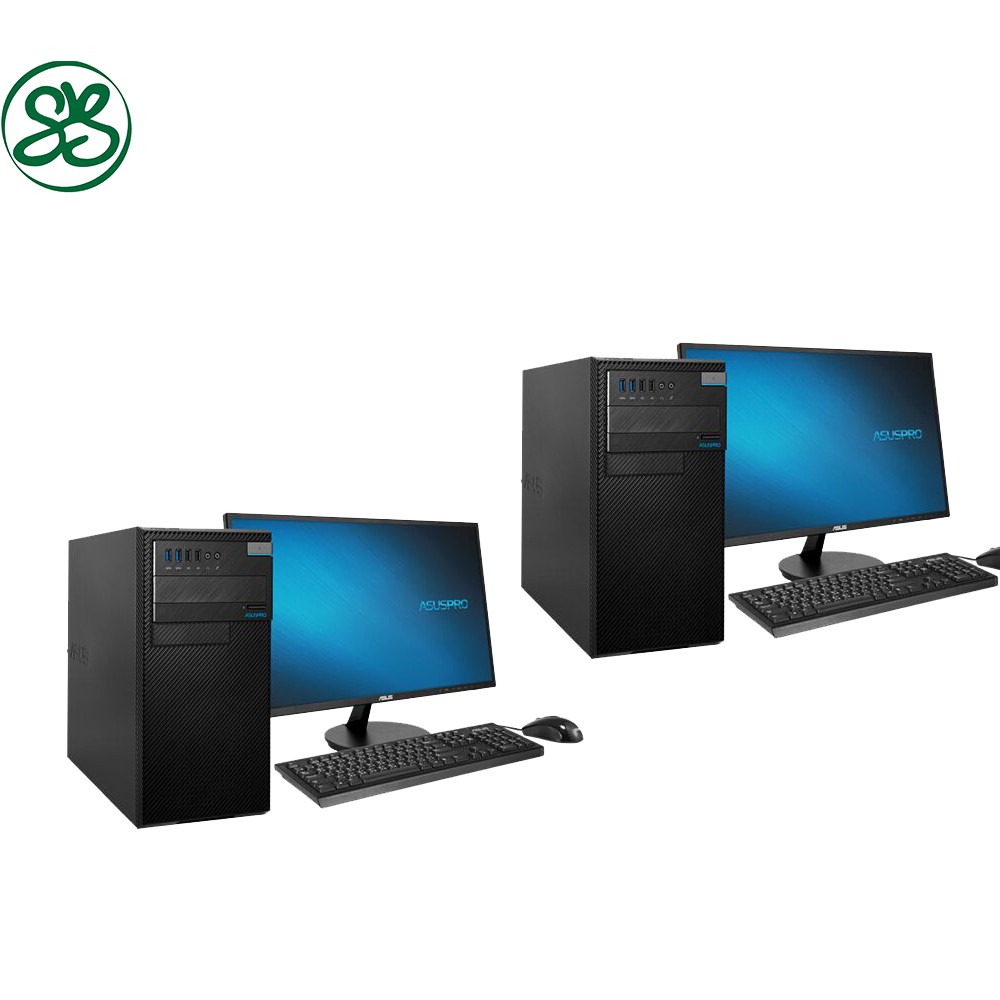

Optional | Computer, Grips |
